Seamless Telegram Login

Bots, Telegram websites and apps may ask users to login to a certain website via Telegram when clicking on certain links or URL buttons in inline keyboards.

OAuth authorization

urlAuthResultRequest#3cd623ec flags:# request_write_access:flags.0?true request_phone_number:flags.1?true match_codes_first:flags.5?true is_app:flags.6?true bot:User domain:string browser:flags.2?string platform:flags.2?string ip:flags.2?string region:flags.2?string match_codes:flags.3?Vector<string> user_id_hint:flags.4?long verified_app_name:flags.7?string = UrlAuthResult;
urlAuthResultAccepted#623a8fa0 flags:# url:flags.0?string = UrlAuthResult;

---functions---

messages.requestUrlAuth#894cc99c flags:# peer:flags.1?InputPeer msg_id:flags.1?int button_id:flags.1?int url:flags.2?string in_app_origin:flags.3?string = UrlAuthResult;

messages.acceptUrlAuth#67a3f0de flags:# write_allowed:flags.0?true share_phone_number:flags.3?true peer:flags.1?InputPeer msg_id:flags.1?int button_id:flags.1?int url:flags.2?string match_code:flags.4?string = UrlAuthResult;

messages.declineUrlAuth#35436bbc url:string = Bool;

messages.checkUrlAuthMatchCode#c9a47b0b url:string match_code:string = Bool;

Telegram allows websites to log in with Telegram using the OpenID Connect (OIDC) protocol, see here » for more info on how to use Telegram Login.

This section documents the flow used by Telegram clients in order to authorize an incoming OIDC (OAuth) request.

The flow begins when the client receives a request to open an OAuth deep link ».

Note: only handle this deep link if the request to open it comes from outside the app; do not handle it if it was clicked inside of the app, for example in messages, buttons, the builtin browser and mini apps, etc.

Note that mini apps can still use OAuth login but in a slightly different manner ».

Handle OAuth deep links » by passing the entire deep link (not just the token parameter) to the url parameter of messages.requestUrlAuth, without setting any other flag.

Make sure to only pass OAuth deep links » to messages.requestUrlAuth in the context of this feature, reject any URL not containing a OAuth deep link.

If the returned result is urlAuthResultRequest, a confirmation prompt should be shown, using the following returned fields (always returned for OAuth requests):

• bot: Identifier of the bot linked to the website making the login request (as specified in @BotFather)
• domain: The domain name of the website on which the user is trying to login.
• platform: The platform (i.e. operating system) of the user that made the OAuth request
• browser: The browser the user used to make the OAuth request
• ip: The IP address of the user
• region: The location of the user, inferred from the IP address

Additionally, the following flags will be set if the request originated from an app (as opposed to a website):

• is_app: Set if the request originated from an app
• verified_app_name: Can only be set if is_app is set and the app is verified

If the request originated from an app, when rendering the confirmation prompt, domain must be replaced with verified_app_name (if set, otherwise, it must be replaced with "Unverified App").

The following flags may also be set:

• request_write_access: If set, the app/website is requesting permission to write to the user via Telegram (using the bot associated with the website).

• request_phone_number: If set, the app/website is requesting the user's phone number.

• user_id_hint: may contain the ID of a user, for which the login request was created.
  If this flag is set and it points to one of the logged-in accounts, clients should automatically switch to that account and re-invoke messages.requestUrlAuth from that account, before showing the prompt.

• match_codes: Contains a list of emojis, one of which is currently being shown on the login page of the original website/app.
  If this flag is set, after the user accepts the login request but before sending the final messages.acceptUrlAuth request, the user must choose the matching emoji and pass it to match_code when finally invoking messages.acceptUrlAuth.

• match_codes_first: Can be optionally be set if and only if match_codes is set. If set, clients should ask the user to select the matching code before showing the rest of the login confirmation UI, not after, and should validate the selected code using messages.checkUrlAuthMatchCode, passing the selected code and the OAuth deep link.
  Only if the method returns boolTrue, proceed with the login flow, re-passing the selected and verified code to messages.acceptUrlAuth.match_code.

  Note that messages.checkUrlAuthMatchCode can only be used if both match_codes and match_codes_first are set: if only the match_codes flag is set, the code must be provided to messages.acceptUrlAuth.match_code without messages.checkUrlAuthMatchCode verification (an error will be returned by messages.acceptUrlAuth if the selected code is invalid).

If the user manually switches accounts in the confirmation prompt, messages.requestUrlAuth should be called again using the newly selected account, because the returned authorization data may differ.

If the user explicitly refuses the login request, messages.declineUrlAuth should be called, passing the OAuth deep link to url.

If the user accepts the login request, messages.acceptUrlAuth should be called, passing the following parameters:

• url: The OAuth deep link
• write_allowed/share_phone_number: if requested and consented to by the user
• match_code: if match_codes is set, the emoji chosen by the user (must be always provided if match_codes is set, even if match_codes_first is set and the code was already validated using messages.checkUrlAuthMatchCode)

On success, the result will be a urlAuthResultAccepted.
If its url field is present, the returned URL should be opened in the external browser (not the in-app browser), if possible using the same browser from which the deep link originated; the URL may also use a custom scheme for direct switching to another app.
If the url field is absent, clients should simply show a toast or a similar message confirming that the login succeeded.

Both messages.requestUrlAuth and messages.acceptUrlAuth may return a URL_EXPIRED error.

OAuth authorization from push notifications

The OAuth authorization flow may also be started by clicking on an OAUTH_REQUEST push notifications: this should trigger the usual oauth flow », using the oauth deep link » contained in custom.data_url.

Note that received OAUTH_REQUEST push notifications are only valid for 60 seconds.

OAuth authorization for mini apps

OAuth authorization from the in-app browser or mini apps follows a slightly different flow.

The flow begins when the client receives an oauth_request event when running inside of the in-app browser/a mini app.

Regardless of the contents of the event, the client should immediately reply with the oauth_supported event (this is required especially for oauth_request events with no url, used to check if the client supports OAuth logins).

In addition to the oauth_supported event emission above, if a valid OAuth deep link was passed in the url parameter of the oauth_request event, the client should also call messages.requestUrlAuth with the following arguments:

• url: Must contain the OAuth deep link from oauth_request.url.
• in_app_origin: Must be set to the origin of the webview event in the following format: scheme://host (or scheme://host:port for non-default ports).

Then, follow the usual OAuth confirmation flow ».

On success, the returned urlAuthResultAccepted should be passed back to the mini app by emitting an oauth_result_confirmed event with result_url equal to the returned url, or to null if the urlAuthResultAccepted did not contain a url.

Before emitting the oauth_result_confirmed event, clients should make sure that the origin of the webview did not change.

On failure or if the OAuth process is cancelled by the user, clients should emit an oauth_result_failed event, instead.

Bot button URL authorization

keyboardButtonUrlAuth#f51006f9 flags:# style:flags.10?KeyboardButtonStyle text:string fwd_text:flags.0?string url:string button_id:int = KeyboardButton;

urlAuthResultRequest#3cd623ec flags:# request_write_access:flags.0?true request_phone_number:flags.1?true match_codes_first:flags.5?true is_app:flags.6?true bot:User domain:string browser:flags.2?string platform:flags.2?string ip:flags.2?string region:flags.2?string match_codes:flags.3?Vector<string> user_id_hint:flags.4?long verified_app_name:flags.7?string = UrlAuthResult;
urlAuthResultAccepted#623a8fa0 flags:# url:flags.0?string = UrlAuthResult;
urlAuthResultDefault#a9d6db1f = UrlAuthResult;

---functions---

messages.requestUrlAuth#894cc99c flags:# peer:flags.1?InputPeer msg_id:flags.1?int button_id:flags.1?int url:flags.2?string in_app_origin:flags.3?string = UrlAuthResult;
messages.acceptUrlAuth#67a3f0de flags:# write_allowed:flags.0?true share_phone_number:flags.3?true peer:flags.1?InputPeer msg_id:flags.1?int button_id:flags.1?int url:flags.2?string match_code:flags.4?string = UrlAuthResult;

Used to login on a website, by clicking on a special button sent by a bot.

When the user clicks on a keyboardButtonUrlAuth, messages.requestUrlAuth should be called, providing the button_id of the button and the ID and peer of the container message. The returned urlAuthResultRequest object will contain more details about the authorization request:

• The domain parameter will contain the domain name of the website on which the user will log in (example: comments.app).
• The bot parameter will contain info about the bot which will be used for user authorization (example: DiscussBot).
• The request_write_access will be set if the bot would like to send messages to the user.
• The request_phone_number will be set if the bot would like to obtain the user's phone number.

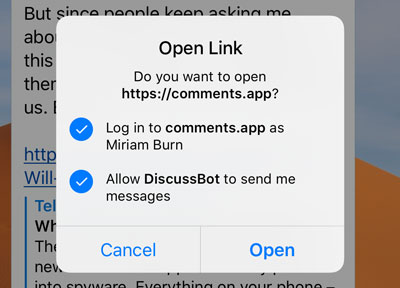

The info should be shown in a prompt:

If the user agrees to login to the URL, messages.acceptUrlAuth should be called, eventually setting the write_allowed/share_phone_number flags if requested by urlAuthResultRequest.request_write_access/request_phone_number and consented to by the user. The result will be a urlAuthResultAccepted with the final URL to open (always set for bot button URL authorization and link URL authorization), which will include a query string with the requested info and a hash that must be verified upon receipt by the service.

urlAuthResultDefault could also be returned, instead, in which case the url of the keyboardButtonUrlAuth must be opened, instead.

The url of the keyboardButtonUrlAuth must be also directly opened without a further call to messages.acceptUrlAuth if the user opens the link while refusing the authorization request by pressing "Cancel" in the popup above.

Note that in some cases, messages.requestUrlAuth may return directly urlAuthResultAccepted, in which case no prompt should be shown, and the returned URL should just be directly opened.

Link URL authorization

Telegram supports automatic authorization on certain websites upon opening an HTTP URL in-app, upon clicking a link in a message or clicking on a keyboardButtonUrl.

Automatic authorization

Clients should automatically authenticate users when opening official Telegram websites, listed in the autologin_domains key of the client configuration object ».

Upon clicking a link, the URL must be modified by appending the autologin_token » from the MTProto configuration object » to the query string, like so:

Original URL: https://somedomain.telegram.org/path?query=string#fragment=value
Modified URL: https://somedomain.telegram.org/path?query=string&autologin_token=$autologin_token#fragment=value

Make sure that the used autologin_token is no more than 10000 seconds old, if it is older it must be refetched before use with help.getConfig.

Manual authorization

Clients should show a confirmation prompt similar to the one used for bot buttons, to authenticate users when opening certain Telegram websites, listed in the url_auth_domains key of the client configuration object ».

When opening a URL with domain equal to one of the url_auth_domains, pass the URL to messages.requestUrlAuth, then follow the same flow used for bot buttons.

Note that in some cases, messages.requestUrlAuth may return directly urlAuthResultAccepted, in which case no prompt should be shown, and the returned URL should just be directly opened.
